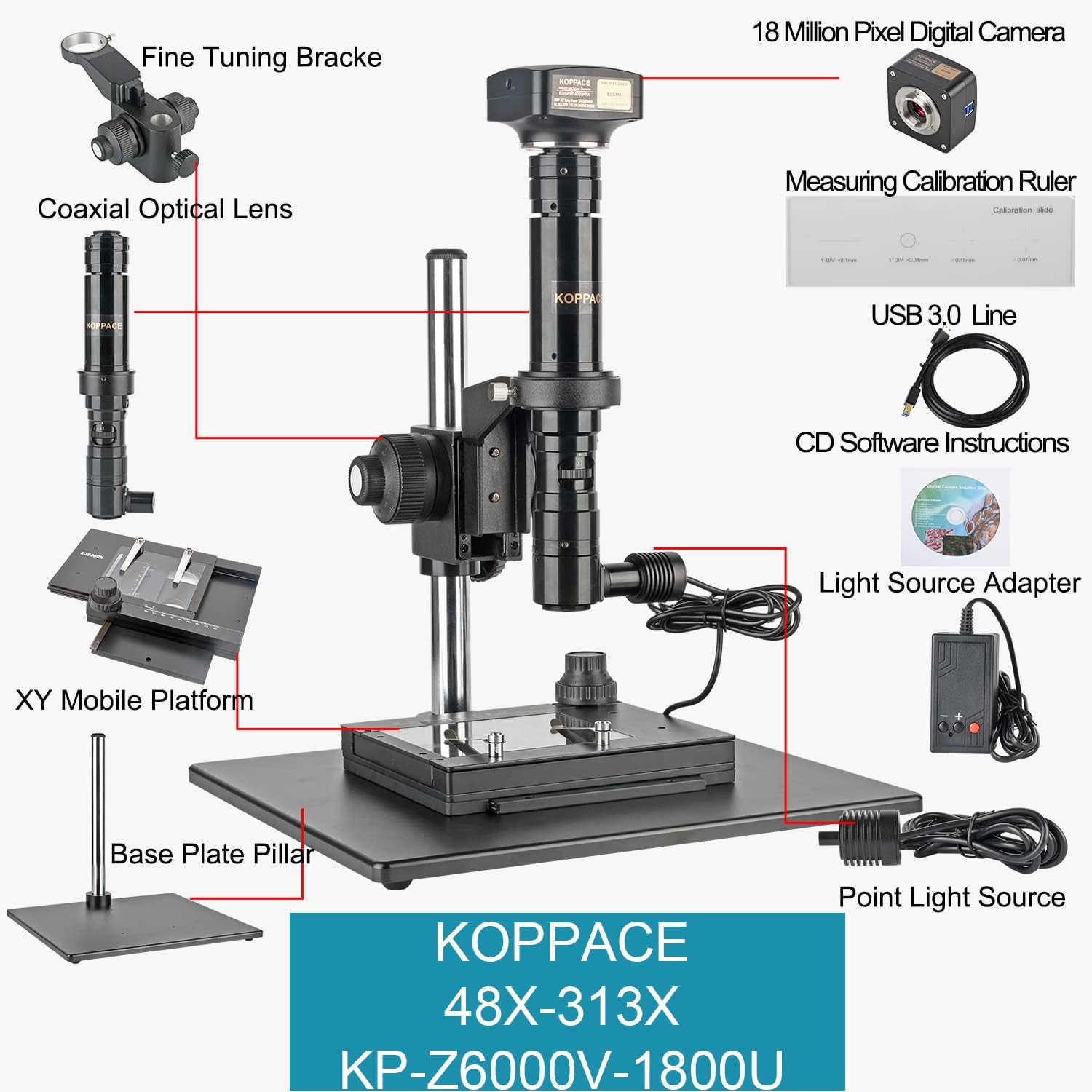

48X-313X 25 Million Pixel Coaxial Photoelectron Microscope Can Take Photos and Video Measurements

Model：KP-Z6000V-1800U Working Stroke：65mm Column Height：300mm Column Diameter：25mm Center Distance：165mm Precision Fine-Tuning：0.002mm Base Size：330mmx300mm Mobile Platform：Panel Size:180x155x26mm Stroke:Horizontal 75mm Vertical:55mm Reading Accuracy:1mm Magnification：48.8X-313.8X Field of View：1.74mm-11.18mm Eyepiece：1X Objective Lens：0.7X-4.5X Continuous Adjustable Auxiliary Objective：1X Point Light：DC 5V 8W LED White Light Working Temperature 0-60℃ Lifetime:50000 Hours Optical Magnification：0.7X-4.5X Working Distance：90mm Length：250mm Lens Mounting Diameter：50mm Pixel：25 Million Pixels Output method：USB3.0 Sensor：25M/Special Sensor1/2.3" (5.519x5.519) Resolution Frame Rate：12@4928x4928，46@2464x2464，100@1648x1648 Pixel Size：1.12μmx1.12μm Exposure Time：0.013ms~15s Exposure：Auto/Manual White Balance：Auto/Manual Color Reproduction：Ultra-Fine hardware ISP Video Color Processing Engine Capture/Control API：C/C++, C#, Directshow, Twain, Labview Operating System：Microsoft Windows XP/Vista/7/8/10(32 & 64 bit)OS X (Mac OS X), Linux Shooting Mode：Image and Video (Support Online Measurement) Packing List 1、Coaxial Optical Lens *1 2、Point Light Source *1 3、Power Adapter *1 4、Pillar *1 5、Base Plate *1 6、Anti-Skid Ring *1 7、Fine Tuning Bracket *1 8、XY Mobile Platform *1 9、18 Million Pixel USB3.0 Camera *1 10、USB3.0 Line *1 11、CD With Software *1 12、Measuring Calibration Ruler *1

• Advanced Software For Windows: Provide SDK
• -Provide Stitching,EDF,Video Recording and Measurement Functions
• -Measure Length,Angle,Radian,Area,Etc.
• -Save Still Images in BMP,TIFF,JPG, PICT,PTL or Other Formats
• -Edit and Process Microscope Images in a Way Similar to PhotoShop
• -Real-time Video and Still image Capture Can be Set at Different Resolutions at the Same Time
• This Product is USB3.0 Output and Can only Be used by Connecting to a Computer.It Can be Measured,Photographed,and Recorded on the Computer.
• This Product Does Not Contain a Computer.
• This Product Provides Professional KOPPACE Software.
