Hiorucet 318984-753 Inducer Motor Assembly with HC21ZE114A Furnace Motor and LA11AA005 Blower Wheel for Jakel, Carrier, Payne, Bryant Furnace, J238-150-1571, 310371-752, HC21ZE117, 65569, 318984753.
Product details
| Management number | 212693241 | Release Date | 2026/04/06 | List Price | $24.00 | Model Number | 212693241 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

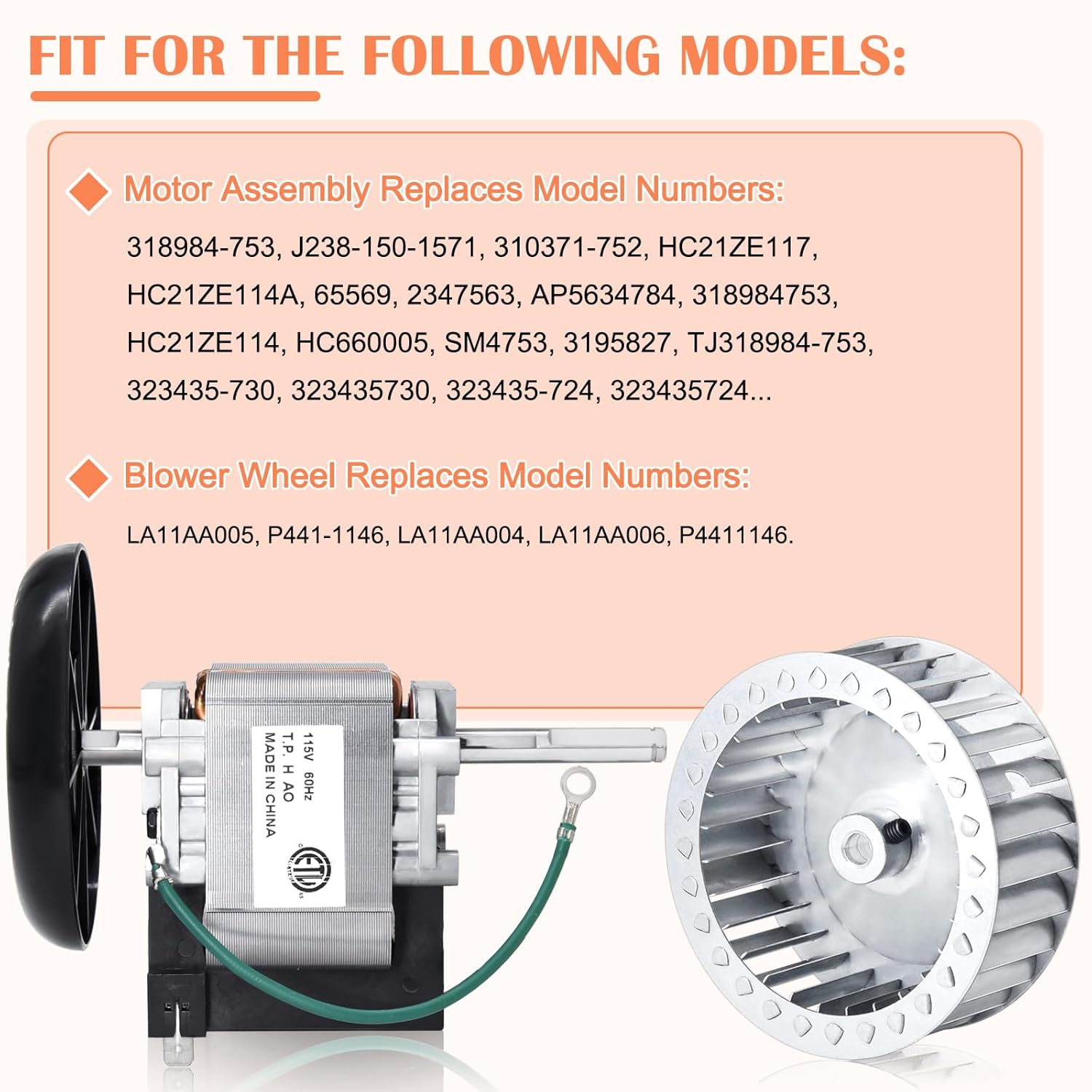

- ►Furnace Inducer Motor Assembly Replaces Model Numbers: 318984-753, J238-150-1571, HC21ZE117, HC21ZE114A, 2347563, AP5634784, 318984753, HC21ZE114, HC660005, SM4753, 3195827, TJ318984-753, 323435-730, 323435730, 323435-724, 323435724, 323435-701, 323435701, 321373-712, 321373712, 321373-711.
- ►Furnace Inducer Motor Assembly Replaces Model Numbers: 321373711, 321373-710, 321373710, 321373-709, 321373709, 321373-708, 321373708, 321373-707, 321373707, 321373-706, 321373706, 321373-705, 321373705, 321373-704, 321373704, 14001, MARS90971, K674, 10704. ►Blower Wheel Replaces Model Numbers: LA11AA005, P441-1146, LA11AA004, LA11AA006, P4411146.
- ►Specifications: 318984-753 inducer motor Volts: 115V, Horsepower: 1/25 hp, 1.8A, 60Hz, 25MHP, 3300RMP, Cont. Duty thermally protected, class B. LA11AA005 draft inducer blower wheel Outside Diameter 4", Width 1.5", 1 Inlets, 1/4 in Bore, CW Closed End, Steel Wheel, Number of Blades 28, Rotation Clockwise.
- ►Inducer Motor Function: This furnace draft inducer motor 318984-753 is designed to expel the exhaust gas from the furnace. Older inefficient furnaces allowed the flue gas to escape the unit with virtually no resistance. Newer high efficient furnace heat exchangers are so restrictive that the flue gases cannot exit the furnace though natural draft. Therefore, the inducer is required to pull the flue gases through the heat exchanger. The inducer motor is usually the first thing that starts up when your furnace calls for heat.
- ►Package Includes: This is a BRAND NEW Furnace Inducer Motor / Exhaust Motor Assembly. Including A Bryant Carrier LA11AA005 Wheel, Inducer Motor Assembly, Harness Adapter (Molex), Harness Adapter (AMP). Note: If you receive this product as faulty, malfunctioning, or having other issues, please feel free to contact us at any time.
